AR Stakeout

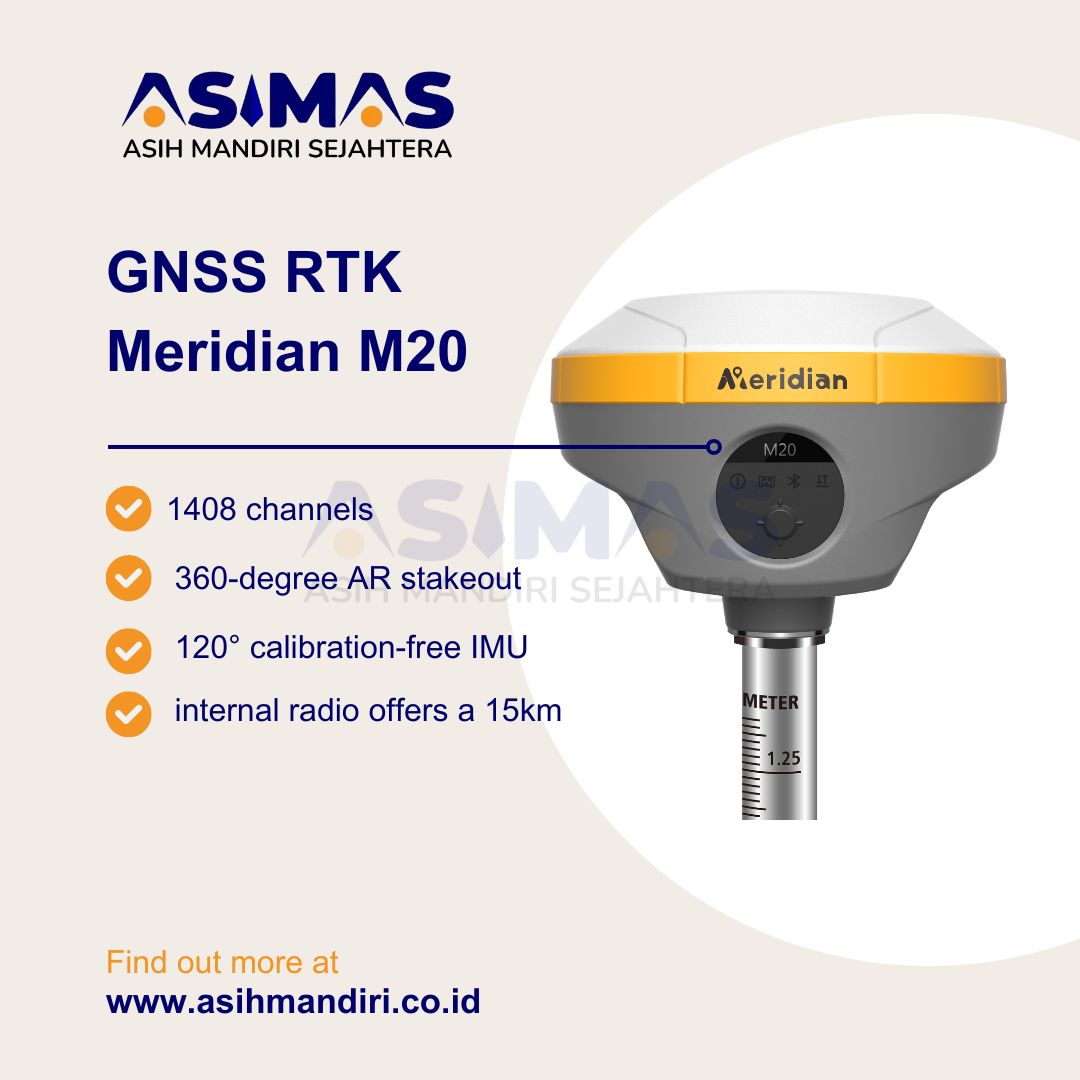

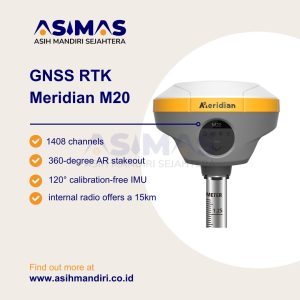

GPS Geodetic Meridian M20 GNSS RTK Penempatan visual memudahkan pencarian titik dengan melapisi berkas desain ke dalam pemandangan nyata, sehingga meningkatkan efisiensi pengintaian. Kamera HD berperforma tinggi menghasilkan akurasi tinggi dengan pelacakan sinyal yang presisi. Pengintaian AR 360 derajat beralih dengan mulus antara pengendali genggam dan penjelajah, memastikan pengalaman pengintaian yang cepat dan akurat.
Jarak Kerja Lebih Jauh
Menawarkan waktu kerja lebih lama hingga 26 jam, memungkinkan pengguna bekerja seharian penuh, juga memastikan data tersimpan dengan aman tanpa risiko kehilangan informasi penting akibat baterai mati.
Solusi Bebas Kalibrasi
Dilengkapi dengan teknologi IMU bebas kalibrasi 120° dalam bodi kecil, M20 menawarkan stabilitas dan presisi tinggi tanpa perlu kalibrasi perangkat, memperluas jangkauan aplikasi M20 ke lokasi yang tidak dapat dijangkau oleh sistem RTK tradisional, membuka cakrawala baru untuk aplikasi produk.
Konstelasi Penuh
Mendukung BDS, GPS, GLONASS, Galileo, QZSS, dan SBAS. Sebanyak 1408 salurannya menawarkan kemampuan pelacakan sinyal GNSS yang komprehensif.
Technical Specification
| System | System | Linux |
| GNSS Signal | Channel | 1408 |
| BDS | B1I，B2I，B3I，B1C，B2a，B2b* | |
| GPS | L1 C/A，L1C*，L2P(Y)，L2C，L5 | |
| GLONASS | L1，L2，L3* | |
| GALILEO | E1，E5a，E5b，E6* | |
| QZSS | L1， L2，L5，L6* | |
| SBAS | L5* | |
| NavIC(IRNSS)* | L1， L2，L5 | |
| L-band | B2b PPP (Only for the Asian-Pacific Region) | |
| Data Format | CMR, CMR+, RTCM2.X, RTCM3.X | |
| Data Output | NMEA-0183, RINEX, TXT | |
| Data Updating Rate | Up to 20Hz | |
| Time to Recapture | <1s | |
| Cold Start | <40s | |
| Positioning Performance |
Single Point Positioning (RMS) | Horizontal: 1.5m | Vertical: 3.0m |
| DGPS (RMS) | Horizontal: 0.4m | Vertical: 0.8m | |
| Real-Time Kinematic (RMS) | Horizontal: ±(8mm+1×10-6·D) | |
| Vertical: ±(15mm+1×10-6·D) | ||
| Speed Accuracy (RMS) | 0.03m/s | |
| Static Accuracy (RMS) | Horizontal: ± (2.5mm+0.5-6·D) | |
| Vertical: ± (5mm+0.5-6·D) | ||
| Time Accuracy (RMS) | 20ns | |
| Speed Accuracy | ≥0.03m/s | |
| Tilt Compensation Accuracy | ≤2cm(Tilt Angle≤60°, Up to 120°) | |
| IMU Update Frequency | 200Hz | |
| Communication | Bluetooth | V2.1+EDR/V4.0 Dual Mode |
| WiFi | 802.11 a/b/g/n/ac | |
| Cellular | LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 | |
| LTE TDD: B38/39/40/41 | ||
| WCDMA: B1/2/4/5/6/8/19 | ||
| GSM: B2/3/5/8 | ||
| Storage | Up to 64GB | |
| Internal Radio | Transmitting power:2W(37±1dBm) 1W(30±1dBm) | |
| Frequency: 410~470MHz | ||
| Protocol: TRIMTALK, TRIMMK3, SOUTH, TRANSEOT, SATEL, MeridianLink optional | ||
| Air Baud Rate: 9600, 19200 | ||
| Battery | Specifications | 7.4V，7000mAh lithium-ion Rechargeable Battery |
| Operating Times | RTK Rover: Up to 26 hours (Typical Power Consumption) | |
| Static: Up to 30 hours (Typical Power Consumption) | ||
| Charging | Support USB PD 15V/2A (Supports Quick Charging Adapter) | |
| Environment | Operating Temperature | -40°C~+85°C |
| Storage Temperature | -55°C~+85°C | |
| Anti-seismic | 2m Pole Drop Onto Concrete | |
| Dust & Waterproof | IP67 | |
| Physical | AR Camera | 500 MegaPixel, large viewing angle, |
| supports live view stakeout | ||
| I/O Interface | 1× USB type-C port; 1 × SMA antenna port; 1× SIM card slot; 1 × 5 pin LEMO port | |
| Dimensions | 119mm×119mm×76mm | |
| Weight | 662g |
