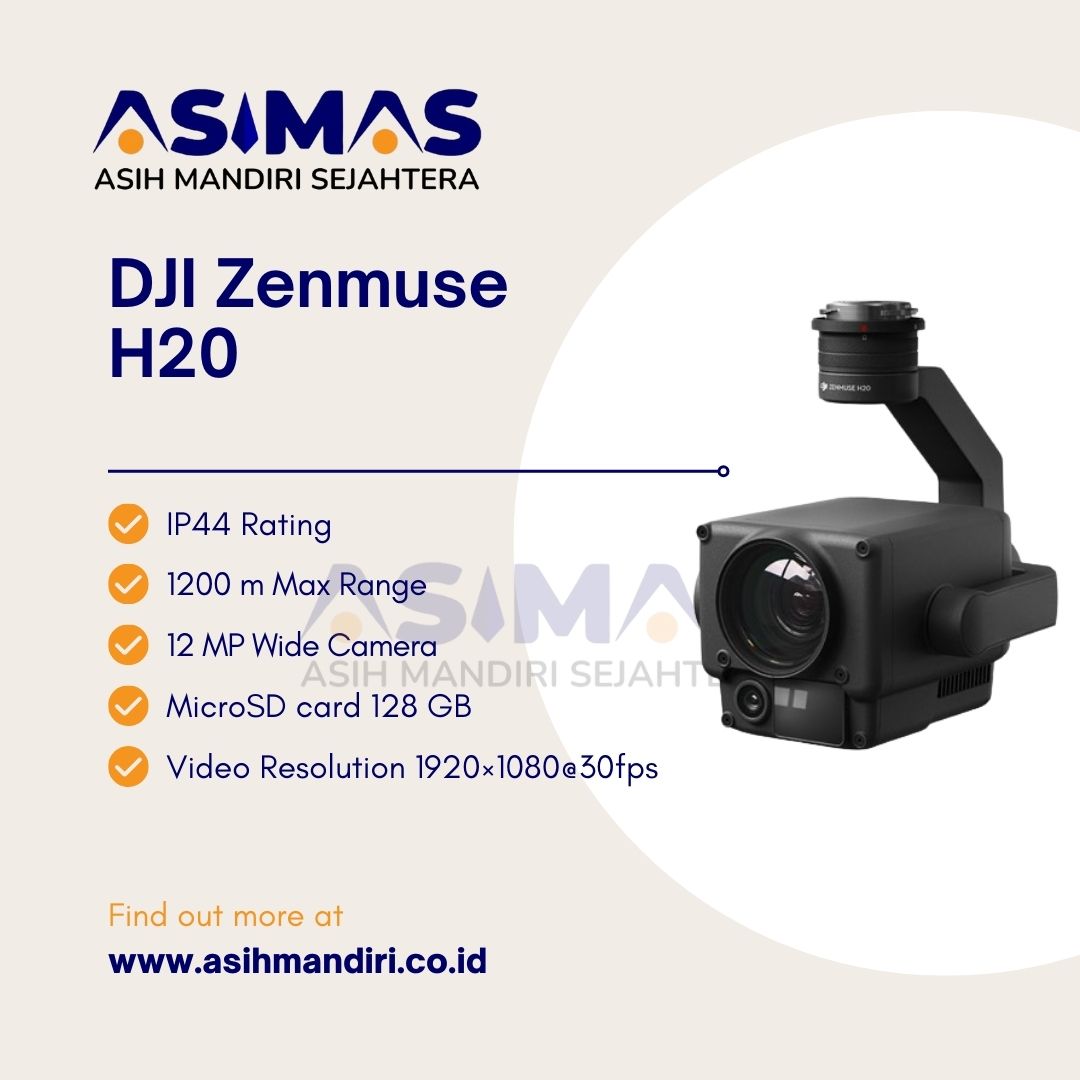

Drone Vtol DJI Zenmuse H20
DJI Zenmuse H20 “H” untuk Hybrid Multi-sensor payloads yang membawa arti baru dalam efisiensi misi.
Kecerdasan unik dan desain terpadu memberikan kemampuan pemetaan udara yang belum pernah ada sebelumnya untuk berbagai aplikasi drone komersial.
Selamat datang pada solusi sensor hibrida pertama drone DJI – Seri Zenmuse H20.
Dengan kamera wide 12 MP yang memiliki sudut pandang DFOV 82.9°,
kamera zoom 20 MP dengan zoom optik hibrida 23×,
dan kamera termal radiometrik dengan resolusi 640×512 piksel,
Seri Zenmuse H20 menyediakan semua sensor yang Anda butuhkan dalam satu paket terpadu.
Fitur-fitur seperti Laser RangeFinder yang mampu mengukur jarak hingga 1200 m,
Rating IP44 untuk ketahanan terhadap elemen,
dan Active Image Stabilization serta EIS membuat Seri Zenmuse H20 menjadi pilihan ideal untuk drone industri.
Seri Zenmuse H20 tidak hanya menawarkan kekuatan pemotretan yang luar biasa,
tetapi juga fitur-fitur cerdas seperti AI Spot-Check yang mengotomatisasi inspeksi rutin
dan PinPoint yang memungkinkan Anda dengan cepat menandai objek dalam pandangan dan mendapatkan koordinatnya secara langsung.
Dengan kemampuan ini, Seri Drone Vtol Zenmuse H20 adalah pilihan terbaik
untuk mereka yang mencari payload drone yang komprehensif dan canggih untuk aplikasi komersial.
| In the box: | |
| -1x Zenmuse H20 | |
| -In the box 1x Lens Cover | |
| -1x Port Cover | |
| -In the box 1x Microfiber Cloth | |
| -1x MicroSD | |
| -1x Carrying Case | |
Spesifikasi |
|
| General | |
| Weight | |
| Zenmuse H20: 678±5 g | |
| Dimensions | |
| Zenmuse H20: 150×114×151 mm | |
| Ingress Protection Rating | |
| IP44 | |
| Operating Temperature | |
| -20° to 50° C (Temperature Measurement is only available between -10° to 50° C) | |
| Storage Temperature | |
| -20° to 60° C | |
| Laser Safety | |
| Class 1M (IEC 60825-1:2014) | |
| Supported Aircraft | |
| Matrice 300 RTK | |
Gimbal |
|
| Angular Vibration Range | |
| ±0.01° | |
| Mount | |
| Detachable | |
| Controllable Range | |
| Pitch: -120° to +30° | |
| Yaw: ±320° | |
| Mechanical Range | |
| Pitch: -132.5° to +42.5° | |
| Yaw: ±330° | |
| Roll: -90° to +60° | |
Zoom Camera |
|
| Sensor | |
| 1/1.7″ CMOS, 20 MP | |
| Lens | |
| DFOV: 66.6°-4° | |
| Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm) | |
| Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene) | |
| Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto) | |
| Focus Mode | |
| MF/AF-C/AF-S | |
| Exposure Mode | |
| Auto, Manual | |
| Exposure Compensation | |
| ±3.0 (1/3 increments) | |
| Metering Mode | |
| Spot metering, Center-weighted metering | |
| AE LOCK | |
| Supported | |
| Electronic Shutter Speed | |
| 1 ~ 1/8000 s | |
| ISO Range | |
| Video: 100 – 25600 | |
| Photo: 100 – 25600 | |
| Video Resolution | |
| 3840×2160@30fps, 1920×1080@30fps | |
| Video Format | |
| MP4 | |
| Video subtitles | |
| Supported | |
| Photo Size | |
| 5184 × 3888 | |
| Photo Format | |
| JPEG | |
Wide Camera |
|
| Sensor | |
| 1/2.3″ CMOS, 12 MP | |
| Lens | |
| DFOV: 82.9° | |
| Focal length: 4.5 mm (equivalent: 24 mm) | |
| Aperture: f/2.8 | |
| Focus: 1 m to ∞ | |
| Exposure Mode | |
| Auto | |
| Exposure Compensation | |
| ±3.0 (1/3 increments) | |
| Metering Mode | |
| Spot metering, Center-weighted metering | |
| AE LOCK | |
| Supported | |
| Shutter Speed | |
| 1 ~ 1/8000 | |
| ISO Range | |
| Video: 100 – 25600 | |
| Photo: 100 – 25600 | |
| Video Resolution | |
| 1920×1080@30fps | |
| Video Format | |
| MP4 | |
| Video subtitles | |
| Supported | |
| Photo Size | |
| 4056 x 3040 | |
| Photo Format | |
| JPEG | |
| Laser Rangefinder | |
| Wave length | |
| 905 nm | |
| Measurement range | |
| 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate) | |
| Measurement accuracy | |
| ± (0.2 m + D×0.15%) | |
| D is the distance to a vertical surface | |
Features |
|
| Hybrid Optical Zoom | |
| 23×（DFOV：4°，EQV：556.2mm） | |
| Max. Zoom | |
| 200×（DFOV：0.5°，EQV：4800mm） | |
| One Click Capture | |
| One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously | |
| Point to Aim | |
| Double click on the wide/thermal camera view,
then the system will automatically move the gimbal to focus on the point of interest |
|
| High-Res Grid Photo | |
| Frame an area of interest in wide camera view,
and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail. |
|
| Night Scene | |
| Supported (zoom camera) | |
| Timestamp | |
| Including GPS, date, and time | |
| Storage | |
| Supported SD Card | |
| MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required) | |
| Supported File Systems | |
| FAT32 (≤ 32 GB), exFAT (> 32 GB) | |
| Recommended Micro SD Cards | |
| TOSHIBA EXCERIA PRO 32GB micro SD HC II | |
| SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I | |
| TOSHIBA EXCERIA PRO 64GB micro SD XC II | |
| SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I | |
| SAMSUNG_EVO_128GB_micro SD 3 XC I | |
| TOSHIBA EXCERIA M303E 32GB micro SD HC I | |
| TOSHIBA EXCERIA M303E 64GB micro SD XC I | |
| SdCards TOSHIBA EXCERIA M303E 64GB micro SD XC I | |
| TOSHIBA EXCERIA M303 128GB micro SD XC I | |
| SAMSUNG_EVO_64GB_micro SD 3 XC I |
