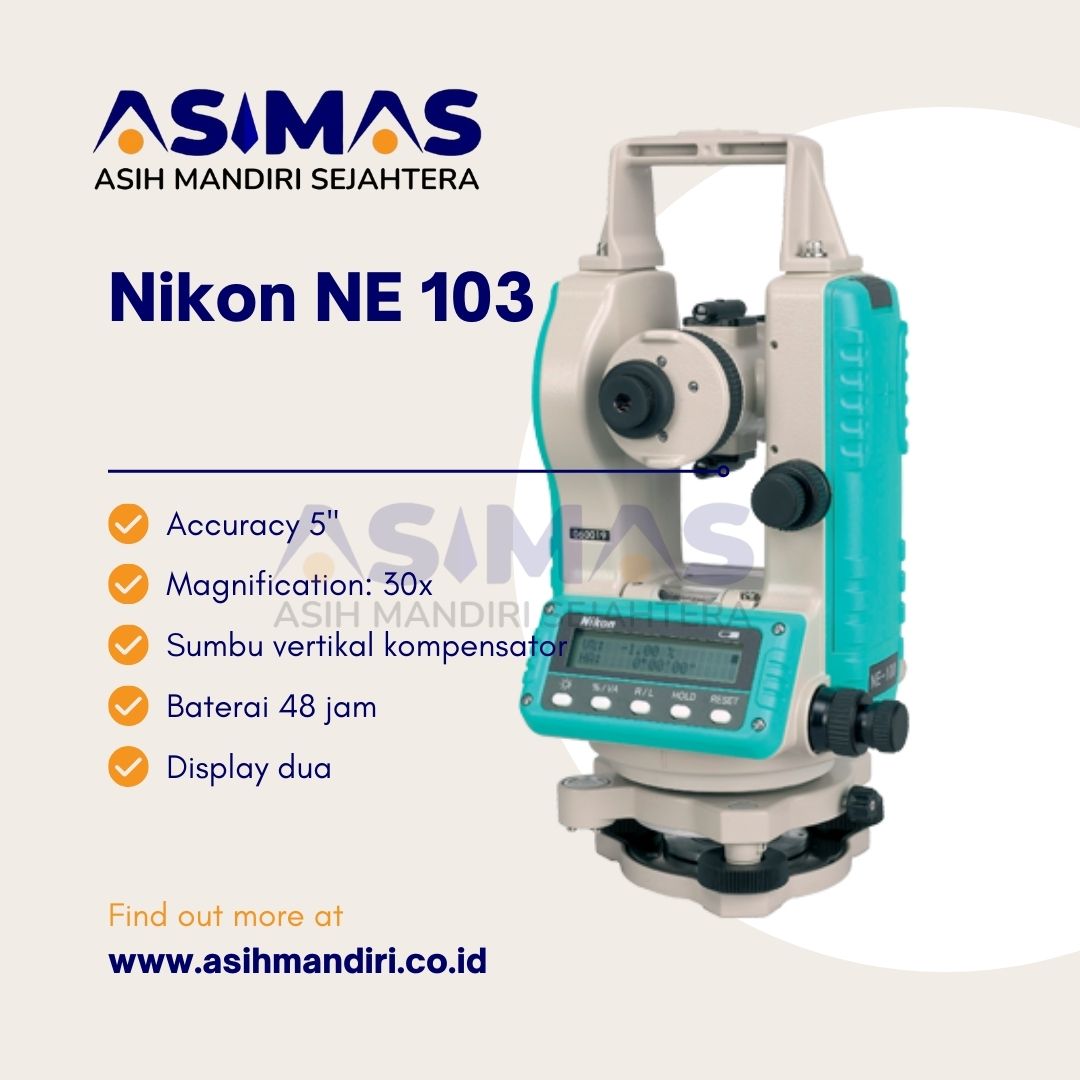

Digital Theodolite Nikon NE 103 : Presisi Terdepan, Desain Ergonomis, dan Kinerja Luar Biasa!
Dirancang khusus untuk konstruksi dan survei, Theodolite Nikon NE-103 menawarkan pengukuran akurat dalam platform yang terjangkau. Dengan baterai tahan hingga 48 jam, keypad ergonomis, dan layar LCD backlit yang besar, alat ini memudahkan pekerjaan lapangan.
Spesifikasi Digital Theodolit Nikon NE103
| NE-102 | NE-103 | |
|---|---|---|
| TELESCOPE | ||
| Effective diameter of objective: | 1.77 in (45 mm) | 1.77 in (45 mm) |
| Magnification: | 30x | 30x |
| Image: | erect | erect |
| Field of view: | 1°20′ (2.3ft @ 100 ft / 2.3m @ 100 m) | 1°20′ (2.3ft @ 100 ft / 2.3m @ 100 m) |
| Minimum focusing distance: | 2.3 ft (0.7 m) | 2.3 ft (0.7 m) |
| Stadia multiplier constant: | 100 | 100 |
| Stadia additive constant: | 0 | 0 |
| Reticle illuminator: | provided | provided |
| ANGLE MEASUREMENT | ||
| Reading system: | photoelectric incremental encoder | photoelectric incremental encoder |
| Circle diameter: | 3.1 in (79 mm) | 3.1 in (79 mm) |
| Unit of reading: | degree / gon / mil | degree / gon / mil |
| Minimum digital reading¹: | 5/10″, 1/2 mgon, 0.02/0.05 mil | 5/10″, 1/2 mgon, 0.02/0.05 mil |
| Accuracy (DIN 18723) | 5″ / 1 mgon | 5″ / 1 mgon |
| AUTOMATIC VERTICAL COMPENSATOR | — | |
| Type: | — | liquid-electric detection |
| Working range: | — | ±3′ (out-of-range warning provided) |
| NE-102 | NE-103 | |
| DISPLAY/KEYPAD | ||
| Front | ||
| Type: | dot-matrix LCD (20 characters x 2 lines) | dot-matrix LCD (20 characters x 2 lines) |
| Backlight: | 1-level illumination | 1-level illumination |
| Keypad: | 5 buttons | 5 buttons |
| Rear | ||
| Type: | dot-matrix LCD (20 characters x 2 lines) | dot-matrix LCD (20 characters x 2 lines) |
| Backlight: | 1-level illumination | 1-level illumination |
| Keypad: | 5 buttons | 5 buttons |
| OPTICAL PLUMMET | ||
| Magnification: | 3x | 3x |
| Field of view: | 5° | 5° |
| Focus range: | 1.6 ft (0.5 m) to infinity | 1.6 ft (0.5 m) to infinity |
| LEVEL SENSITIVITY | ||
| Plate level: | 30″ / 2 mm | 30″ / 2 mm |
| Circular level: | 10′ / 2 mm | 10′ / 2 mm |
| NE-102 | NE-103 | |
| LEVELING BASE | ||
| Type: | detachable | detachable |
| AMBIENT TEMPERATURE RANGE | -4 TO 122 °F (-20 to 50 C) | -4 TO 122 °F (-20 to 50 C) |
| ENVIRONMENTAL RATING | IP56 | IP56 |
| NE-102 | NE-103 | |
| DIMENSIONS | ||
| Instrument: | 6.0 x 6.8 x 13.1 in (153.5 x 172 x 334 mm) | 6.0 x 6.8 x 13.1 in (153.5 x 172 x 334 mm) |
| WEIGHT | ||
| Instrument: | 9.9 lbs (4.5 kg) | 10.1 lbs (4.6 kg) |
| Carrying case: | 8.6 lbs (3.9 kg) | 8.6 lbs (3.9 kg) |
| POWER SUPPLY | ||
| Battery type: | 1.5V AA Alkaline x 6 | 1.5V AA Alkaline x 6 |
| Continuous operating time (at 68 °F / 20C) | 48 | 48 hrs |
Paket Penjualan Digital Theodolite Nikon NE 103 :
- Nikon NE-103
- Rambu ukur / leveling staff
- Allumunium tripod
Jelajahi dunia pengukuran dengan presisi tinggi bersama Theodolite Nikon NE103!
