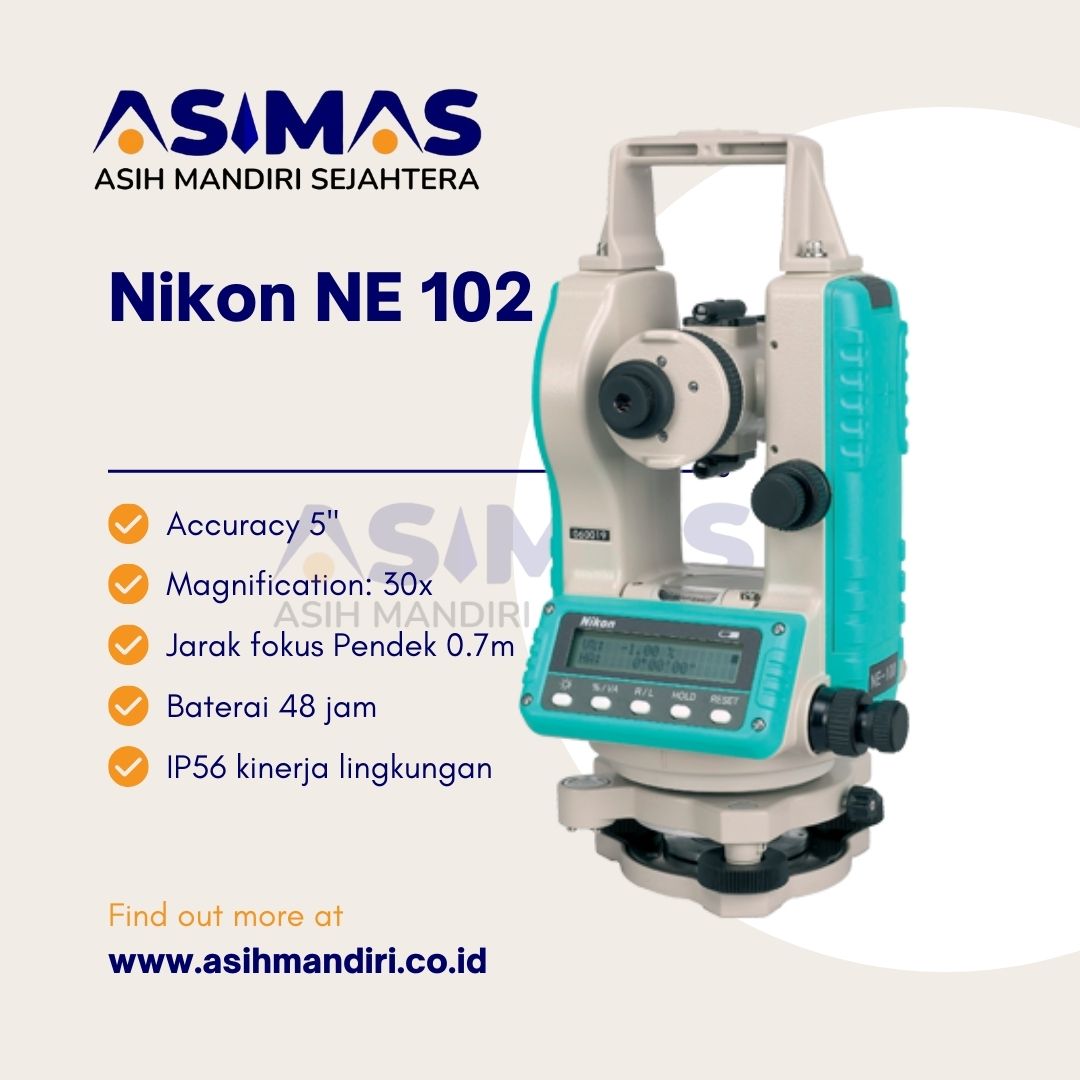

Digital Theodolite Nikon NE 102, alat kece buat pengukuran yang bikin hidup surveyor jadi lebih gampang. Jadi, alat ini dirancang khusus buat aplikasi konstruksi dan penyelidikan umum, nih. Dari TDS, alat elektronik digital dari Nikon NE-100 Series ini punya kemampuan ngasih pengukuran yang akurat, terjangkau, dan pastinya gampang dipake. Apalagi, bisa jalanin 48 jam nonstop dengan baterai alkaline AA.
Nih, ada beberapa fitur utama yang bisa bikin lo pangling. Bisa baca sudut 5 atau 10 inci dengan tampilan yang jernih dan terang berkat pencahayaan backlight. Trus, ada sumbu vertikal kompensator buat NE-103, jadi lebih advanced gitu. Baterainya juga awet banget, bisa tahan sampe 48 jam, 47 jam buat NE-103. Dan yang penting, ini tahan air dengan kinerja lingkungan IP56, jadi bisa dipake di segala kondisi cuaca.
Spesifikasi – Digital Theodolite Nikon NE-102
| NE-102 | NE-103 | |
|---|---|---|
| TELESCOPE | ||
| Effective diameter of objective: | 1.77 in (45 mm) | 1.77 in (45 mm) |
| Magnification: | 30x | 30x |
| Image: | erect | erect |
| Field of view: | 1°20′ (2.3ft @ 100 ft / 2.3m @ 100 m) | 1°20′ (2.3ft @ 100 ft / 2.3m @ 100 m) |
| Minimum focusing distance: | 2.3 ft (0.7 m) | 2.3 ft (0.7 m) |
| Stadia multiplier constant: | 100 | 100 |
| Stadia additive constant: | 0 | 0 |
| Reticle illuminator: | provided | provided |
| ANGLE MEASUREMENT | ||
| Reading system: | photoelectric incremental encoder | photoelectric incremental encoder |
| Circle diameter: | 3.1 in (79 mm) | 3.1 in (79 mm) |
| Unit of reading: | degree / gon / mil | degree / gon / mil |
| Minimum digital reading¹: | 5/10″, 1/2 mgon, 0.02/0.05 mil | 5/10″, 1/2 mgon, 0.02/0.05 mil |
| Accuracy (DIN 18723) | 5″ / 1 mgon | 5″ / 1 mgon |
| AUTOMATIC VERTICAL COMPENSATOR | — | |
| Type: | — | liquid-electric detection |
| Working range: | — | ±3′ (out-of-range warning provided) |
| NE-102 | NE-103 | |
| DISPLAY/KEYPAD | ||
| Front | ||
| Type: | dot-matrix LCD (20 characters x 2 lines) | dot-matrix LCD (20 characters x 2 lines) |
| Backlight: | 1-level illumination | 1-level illumination |
| Keypad: | 5 buttons | 5 buttons |
| Rear | ||
| Type: | dot-matrix LCD (20 characters x 2 lines) | dot-matrix LCD (20 characters x 2 lines) |
| Backlight: | 1-level illumination | 1-level illumination |
| Keypad: | 5 buttons | 5 buttons |
| OPTICAL PLUMMET | ||
| Magnification: | 3x | 3x |
| Field of view: | 5° | 5° |
| Focus range: | 1.6 ft (0.5 m) to infinity | 1.6 ft (0.5 m) to infinity |
| LEVEL SENSITIVITY | ||
| Plate level: | 30″ / 2 mm | 30″ / 2 mm |
| Circular level: | 10′ / 2 mm | 10′ / 2 mm |
| NE-102 | NE-103 | |
| LEVELING BASE | ||
| Type: | detachable | detachable |
| AMBIENT TEMPERATURE RANGE | -4 TO 122 °F (-20 to 50 C) | -4 TO 122 °F (-20 to 50 C) |
| ENVIRONMENTAL RATING | IP56 | IP56 |
| NE-102 | NE-103 | |
| DIMENSIONS | ||
| Instrument: | 6.0 x 6.8 x 13.1 in (153.5 x 172 x 334 mm) | 6.0 x 6.8 x 13.1 in (153.5 x 172 x 334 mm) |
| WEIGHT | ||
| Instrument: | 9.9 lbs (4.5 kg) | 10.1 lbs (4.6 kg) |
| Carrying case: | 8.6 lbs (3.9 kg) | 8.6 lbs (3.9 kg) |
| POWER SUPPLY | ||
| Battery type: | 1.5V AA Alkaline x 6 | 1.5V AA Alkaline x 6 |
| Continuous operating time (at 68 °F / 20C) | 48 | 48 hrs |
- Nikon NE-102
- Rambu ukur / leveling staff
- Allumunium tripod
Intinya, buat lo yang lagi cari Digital Theodolite yang mantap, gue saranin cek Nikon NE102. Pasti puas, deh! Nggak percaya? Coba aja, ntar lo tau sendiri. Makin gampang, makin akurat, pastinya bikin hidup lo sebagai surveyor jadi lebih asyik! Semangat ngukurnya, geng!
