Alpha Geo MatrixII (a-GEO)

Alpha Geo MatrixII (a-GEO)

Alpha Geo MatrixII (a-GEO) dengan fitur terbaru AR CAMERA Ketika titik pengintaian ditandai langsung di tanah, surveyor dapat dengan mudah menemukan lokasi pasti dari titik pengintaian tersebut. Dengan mengikuti tanda panah pada peta kehidupan nyata, Anda dapat mengintai titik-titik sekaligus, tanpa harus menggerakkan tiang ke depan dan ke belakang, sehingga pekerjaan pengintaian menjadi lebih akurat dan efisien.

Jual GPS Geodetik Alpha Geo MatrixII

Jual GPS Geodetik Alpha Geo MatrixII  Teknologi kalibrasi cepat pengukuran koordinat laser eksklusif yang dipatenkan di dunia dapat dengan mudah mencapai akurasi pengukuran tingkat sentimeter, menjadikan pengukuran lebih akurat dan mudah digunakan. Selain itu kamera yang digunakan pada peralatan mengatasi kesulitan membidik di bawah sinar matahari, membuat operasi pengukuran lapangan menjadi lebih cepat dan efisien.

FITUR a- GEO MATRIXII :

• Multi constellation 1408 Satelit
• AR Camera
• Worry-free Storage 64GB
• WiFi and WebUl
• IMU Tilt Sensor 120 Derajat
• GSM & UHF radio 410 MHz to 470 MHz
• Battery & Power 7000mAh 12 jam
• 1P67
• Working Mode Static, Network RTK, UHF RTK, PPK & etc.

SPESIFIKASI :

Performance specification
Satellite	GPS: L1C/A, L1C, L2P(Y), L2C, L5
	GLONASS: L1, L2, L3
	BEIDOU: B1I, B2I, B3I, B1C, B2a, B2b
	GALILEO: E1, E5a, E5b,E6
	QZSS: L1, L2, L5, L6
	SBAS: L1, L5
	IRNSS: L5
Channels	1408 tracking Channels
Cold start	<60 s
Hot start	<15 s
Positioning output rate	1Hz – 20Hz
Signal Reacquisition	<1s
RTK Initialization time	<10s
Initialization Reliability	>99.99%
Time accuracy	20 ns
Positioning
Code differential GNSS positioning	Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS SBAS differential positioning accuracy²: typically <5m 3DRMS
Static GNSS surveying	Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS
Real Time Kinematic Surveying
Single Baseline < 30 KM	Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1ppm RMS
Network RTK	Horizontal: 8 mm + 0.5 ppm RMS Vertical: 15 mm + 0.5 ppm RMS
Physical
Material	Magnesium alloy
Dimensions	120mm*72mm ( without bottom connector 20mm)
weight	0.76kg
Operating temperature	-40°C to + 75°C
Storage temperature	-55°C to + 85°C
Protection IP	IP67 dust proof, protected from 30min immersion to depth of 1m
Shock	Survive a 2m pole drop onto concrete
Vibration	MIL-STD-810G
Humidity	100%, condensing
Power Supply
Battery	Power: 9~24V DC external power input on 5 pin LEMO port
	Support USB Type-C fast charging
	Internal 7000mAh-7.4V lithium-ion battery
	Battery Life
	Rover Mode: 12 hours
	Base Mode: 7 hours
	Static Mode: 15 hours
Communication & Data Storage
I/O interface	LEMO port (5pin) Supports power input, serial port control, and external radio communication
	USB Type-C port        Data download / Charging
	Sim card slot          Supports Nano-SIM
	Antenna port           UHF antenna interface
Radio modem	Transmit power         1/1.5w switchable
	Frequency band         410MHz-470MHz; supports to set the frequency
	Protocols              TrimTalk450s, SOUTH, Satel,PCC-EOT
Cellular	Integrated full frequency multi band 4G modem, supports WCDMA/CDMA2000/TDD-LTE/FDD-LTE
WIFI	802.11 b/g standard, access point & client mode, supports access to hotspot for correction transmission
Bluetooth	Bluetooth 5.2 Classical/BLE Proprietary double-mode
Data format	RTCM2x, RTCM3x, CMR & CMR+, sCMRx
	RINEX, NMEA outputs
Storage	64GB internal memory, supports cyclic storage; with ability to collect over one year raw observation based on 5 seconds interval
Camera
AR	5M high-definition camera with large viewing angle and support for live scene lofting
Laser assisted	5M high-definition camera, large viewing angle, auxiliary laser measurement and aiming
System integration
OS system	Intelligent LINUX operating system
Tilt Compensation	IMU up to 120°(Calibration free)
Supported controllers	All android devices with supported software
Design
Button	Power key
Indicator	Power indicator, data link indicator, satellite indicator, Bluetooth indicator
Voice	Intelligent voice prompts
WEBUI	Support WEBUI configuration

INCLUDE :

Base
Rover

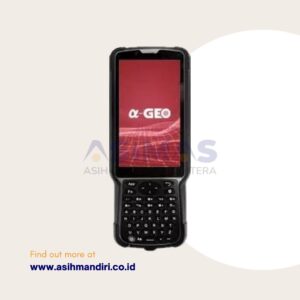

Controller
Pole Carbon
Tripod Statif
Tribrach Adapter
Antena Internal
Charger
Kabel Download Data
Box Hardcase
